Servo Calibration

Note

This guide can be quite improved.

Servos work by using PWM (Pulse Width Modulation) signals, where different pulse
widths correspond to specific angles. Typically, this ranges between 500 µs and
2000 µs. However, due to manufacturing tolerances—especially in more affordable
servos—there can be significant variation in how each servo responds to the same
PWM signal.

To improve accuracy, each servo can be calibrated to determine its specific PWM
response curve. This only requires some simple math and a bit of setup.

Result

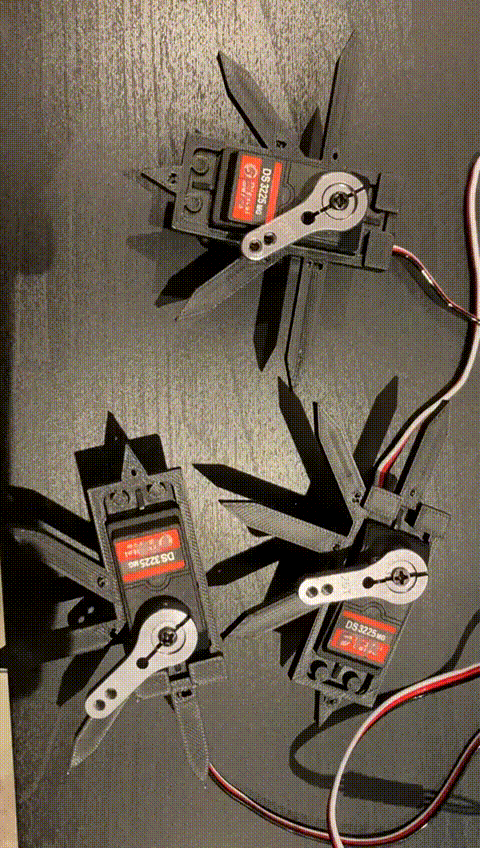

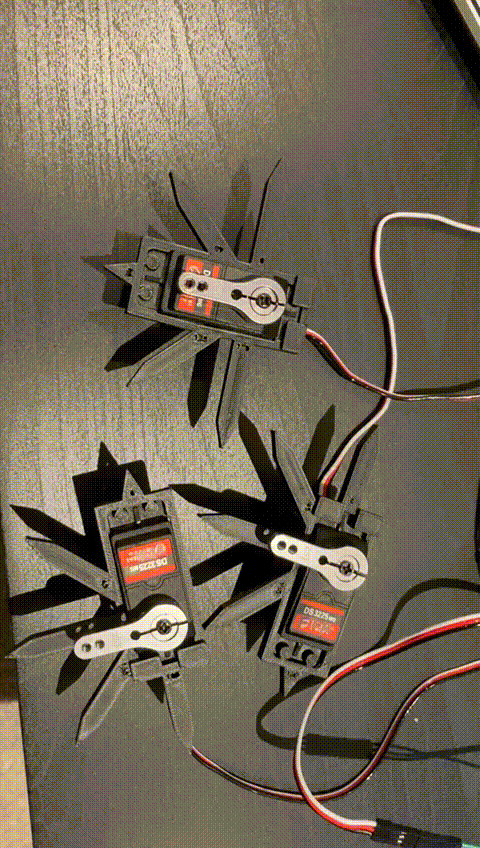

Before Calibration	After Calibration

With calibration, servo motion becomes noticeably more accurate and consistent.

Repo Content

1. Calibration_Procedure.ipynb: A Google Colab notebook that fits a least-squares
   regression to convert angles to PWM values specific to each servo.

2. calibarte_servos.ino: Arduino code to help identify real PWM values using the
   Calibration Tool.

3. save_coefficients/: Folder containing .csv and .xlsx files used to store
   calibration data for each leg and servo.

Background and Motivation

Servos are controlled by PWM signals to reach a given angle. However, each servo
has unique mechanical and electrical characteristics that lead to deviations between
the desired angle and the actual angle achieved.

This calibration process helps:

1. Measure how each servo responds to standard angles.
2. Fit a custom curve (linear or quadratic) for more accurate angle-to-PWM mapping.

The theoretical formula from datasheets is often:

• PWM = 7.4 × desired_angle + 500

So for example:

• [0, 45, 90, 135, 180] degrees → [500, 833, 1166, 1500, 1832] PWM values

However, these are idealized values—calibration helps find the real-world equivalent.

Process of Calibration

1. Compute ideal PWM values
   Use Cell 1 of the notebook to calculate PWM values for known angles using the
   datasheet formula.

2. Align servo using Arduino code
   Upload the Arduino sketch
   and use the serial monitor to manually tune PWM values until the servo aligns with
   target angles (0°, 45°, 90°, 135°, 180°).

3. Record the actual PWM values
   Example values from the Front Right leg:

real_pwm_SFR = np.array([564, 890, 1219, 1564, 1897])
real_pwm_FFR = np.array([606, 930, 1265, 1606, 1930])
real_pwm_TFR = np.array([555, 895, 1230, 1580, 1910])

1. Fit a regression curve
   Use least-squares regression to generate coefficients for the curve that maps
   desired degrees to PWM for each servo.

2. Test and verify accuracy
   Use the new function to convert angles into PWM and verify improved motion accuracy.

---

Cell 1 – Setup and PWM Conversion

# Libraries
import numpy as np

# Convert desired angles (degrees) to PWM using datasheet formula
def deg2PWM(desire_deg_angles):
    output = []
    for angle in desire_deg_angles:
        pulse = round((7.4074 * angle) + 500, 0)
        output.append(pulse)
        print(f"// {angle} degrees => {pulse} PWM")
    return output

# Example usage
desire_angles = [0, 45, 90, 135, 180, 270]
desired_PWM = deg2PWM(desire_angles)
print("\nDesired PWM values:", desired_PWM)

print("\nPlease run these PWM signals and record the actual angles reached.")

---

Arduino Procedure

1. Upload the Arduino sketch.
2. Open the serial monitor and set the PWM to 500.
3. Attach the servo arm using the calibration tools aligned as closely as possible to 0°.
4. Adjust the PWM value until the arm aligns perfectly with 0°.
5. Record the PWM, and repeat for 45°, 90°, 135°, and 180°.

---

Cell 2 – Save Real PWM Values

real_pwm_SFR = np.array([564, 890, 1219, 1564, 1897])

---

Cell 3 – Run Regression

import matplotlib.pyplot as plt

# Input: degrees and corresponding real PWM values
degrees = np.array([0, 45, 90, 135, 180])
real_pwm = real_pwm_SFR  # Replace with your servo data

# Fit a quadratic regression curve
coefficients = np.polyfit(degrees, real_pwm, 2)
a, b, c = coefficients

print(f"Quadratic coefficients: a = {a}, b = {b}, c = {c}")

# Plotting
plt.scatter(degrees, real_pwm, color='blue', label='Measured data')
x_vals = np.linspace(0, 180, 1000)
y_vals = a * x_vals**2 + b * x_vals + c
plt.plot(x_vals, y_vals, color='red', label=f'Fit: {a:.2f}x² + {b:.2f}x + {c:.2f}')
plt.xlabel('Degrees')
plt.ylabel('PWM')
plt.title('Servo Calibration Curve')
plt.legend()
plt.grid(True)
plt.show()

---

Notes

• Calibrate each servo individually, as they may have different characteristics.
• Keep the servo horn attached after calibration—removing it will require redoing the process.
• Store your coefficients securely for consistent motion across reboots or deployments.

By following this process, you’ll significantly improve servo positioning accuracy,
making your robot’s motion more reliable and repeatable.

---
