Inverse Kinematics

Inverse Kinematics (IK) is a mathematical approach used in robotics to determine the necessary joint angles to position an end-effector (like a robotic arm or leg) at a specific point in space. This is particularly useful for robots with multiple degrees of freedom (DoF), such as our botzo v2s, which has 3 DoF per leg.

Inverse Kinematics is used in robots with legs or arms. It is a series of matrix moltiplications and trigonometry formulas (sin, cos,atan2 law of cosin, pitagora, etc...), in order too find the angles each motor in the leg need to have to reach a point in space (x,y,z). Our dog have 3 Degrees of freedom (3DoF), meaning 3 motors per leg.

On the other side forward kinematics calculate where the end-effector/the foot end up based on given/known angles of each motor.

Both uses known constants such as lenght of each "bone". For Inverse Kinematic also the target point is a known variable, and it allow us to find the angle configuration we need to reach that point in space.

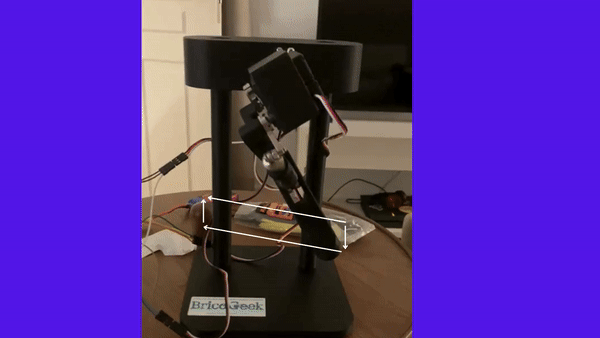

IK3DOF

firststeps

Note

In coordinates_to_servos.ipynb we have combined the use of our IK with the transformation from degrees to PWM explained in calibrate servos repo

3 DoF IK Of 1 leg

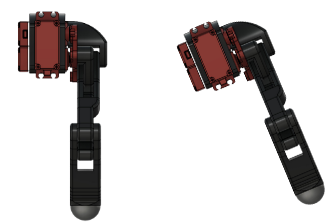

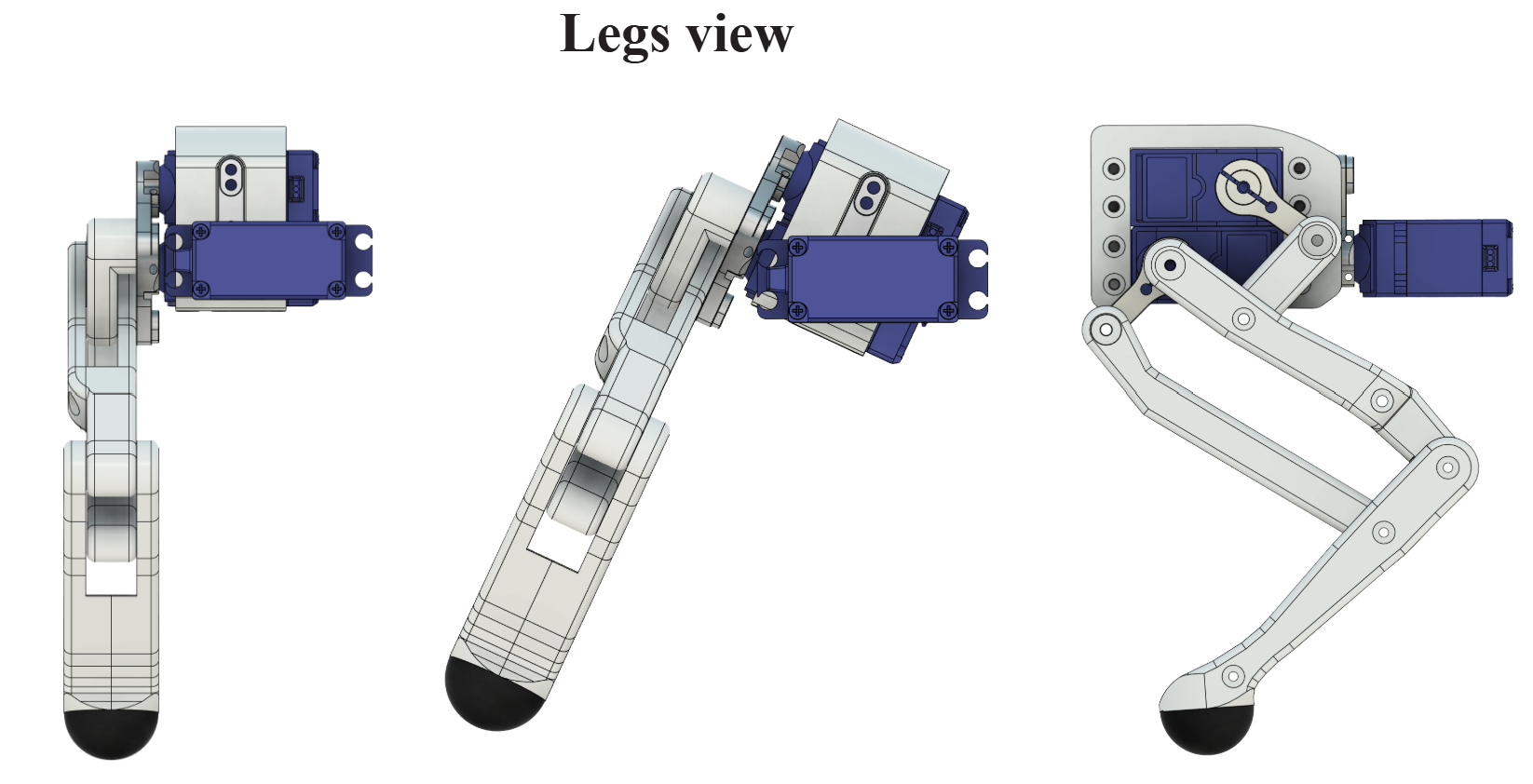

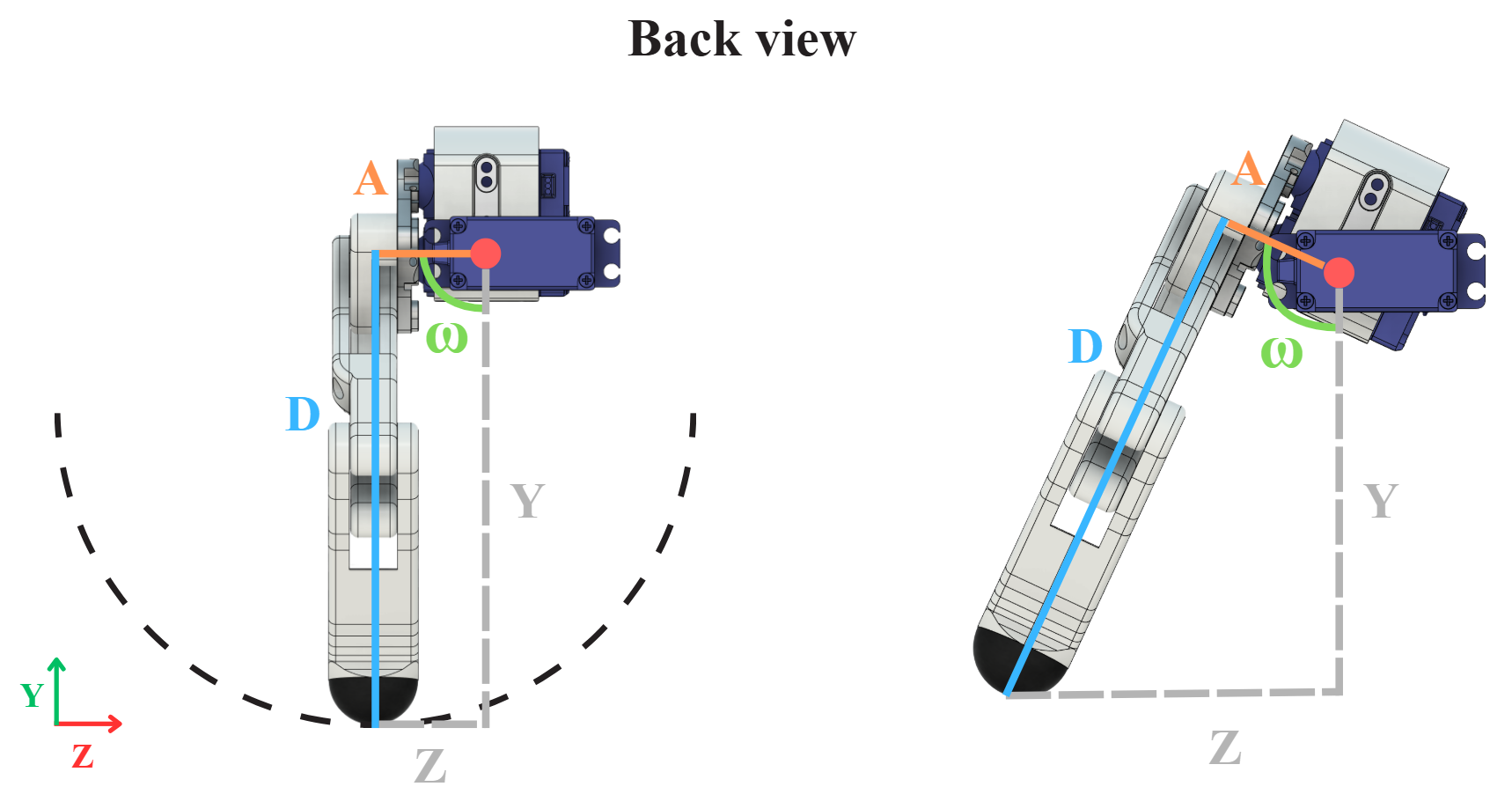

IK_back_of_leg

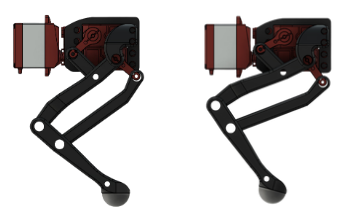

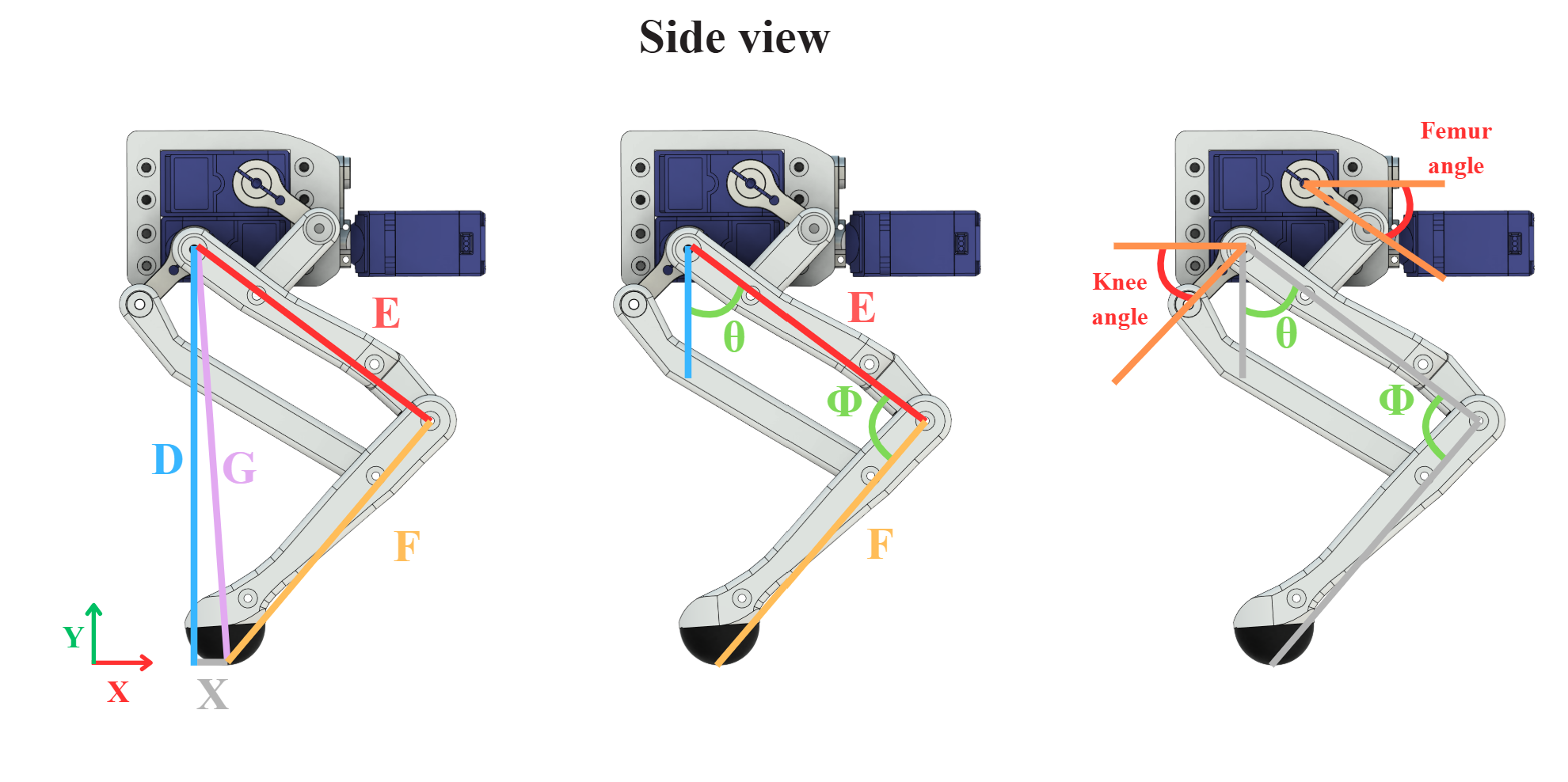

IK_side_of_leg

Solver

Note:

coxa = A = 3.1 cm
femur = E = 9.5 cm
real_femur = E' = 9.1 cm
tibia = F = 9.8 cm
θ(coxa) = ψ
θ(knee) = Φ
θ(shoulder) = θ
dist_focuspoint_servo_femurtibia = 2.8 cm
X, Y, Z = given target point

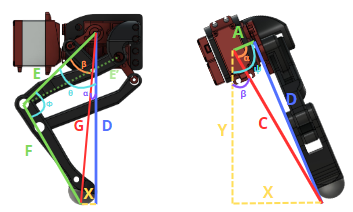

IK_trigonometrics_drawing

  1. Distance Calculation
D = \sqrt{Z^2 + Y^2 - \text{A}^2}
  1. G Calculation
G = \sqrt{D^2 + X^2}
  1. Knee Angle
\text{Φ} = \arccos\left(\frac{G^2 - \text{E}^2 - \text{F}^2}{-2 \cdot \text{E} \cdot \text{F}}\right)
  1. Shoulder Angle
\theta_{\text{shoulder}} = \arctan2(X, D) + \arcsin\left(\frac{\text{F} \cdot \sin(\text{Φ})}{G}\right)
  1. Coxa Angle
\text{ψ} = \arctan2(Y, Z) + \arctan2(D, \text{A})

Translator

Here we will translate the founded angles with the translator in the actual angles we will pass to the robot servos

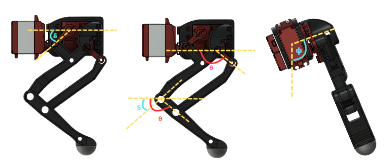

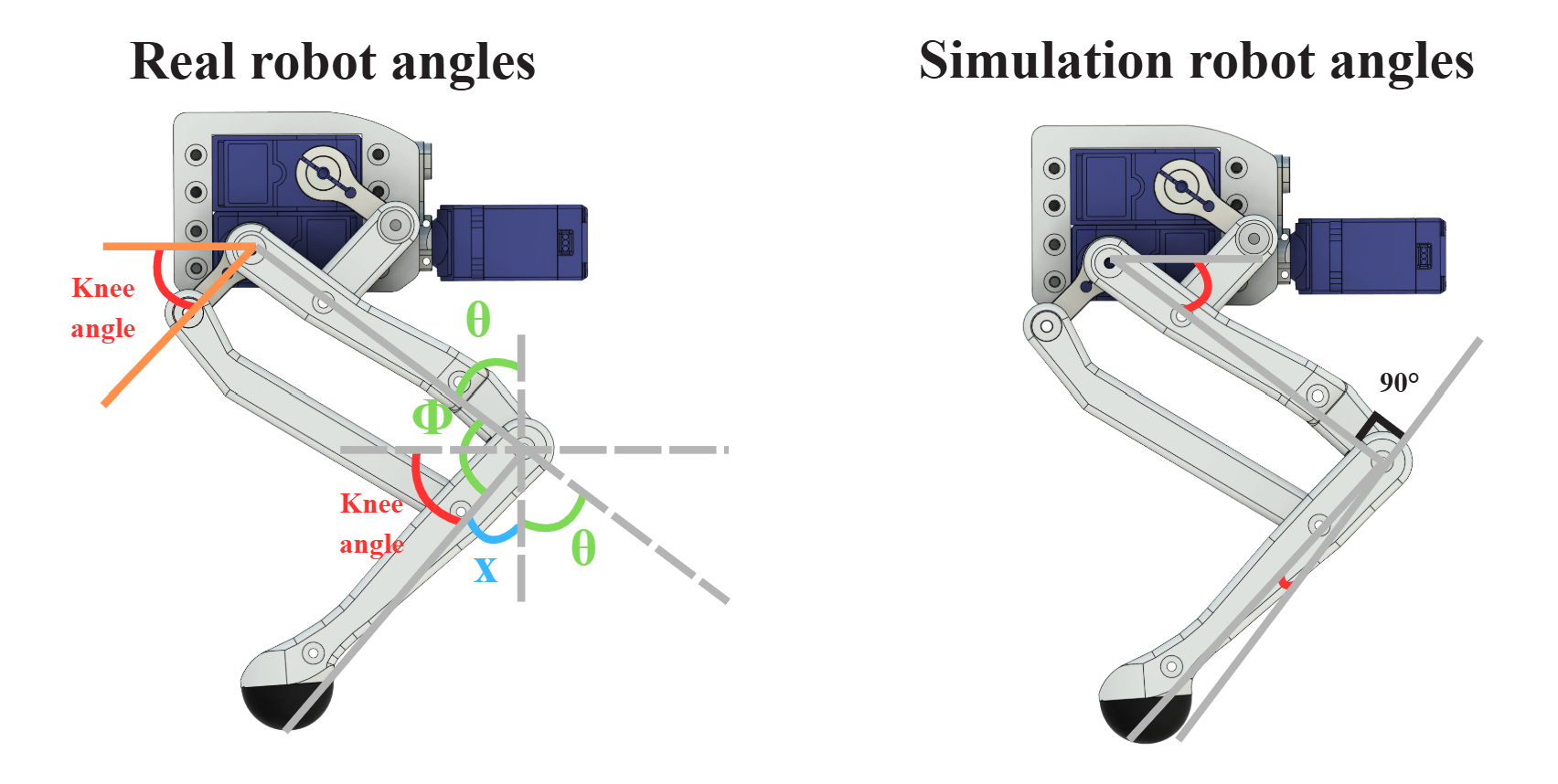

IK_desire_angles

  1. Adjustment
\text{adjustment} = \arccos\left(\frac{\text{real\_femur}^2 + \text{femur}^2 - \text{dist\_focuspoint\_servo\_femurtibia}^2}{2 \cdot \text{real\_femur} \cdot \text{femur}}\right)
  1. Femur Angle
\theta_{\text{femur}} = \frac{\pi}{2} - (\theta_{\text{shoulder}} + \text{adjustment})
  1. Tibia Angle
\theta_{\text{tibia}} = \pi - \theta_{\text{knee}} + \text{adjustment} + \theta_{\text{femur}}

Resources

Spot-Micro

OpenQuadruped/spot_mini_mini

Rotation Matrices

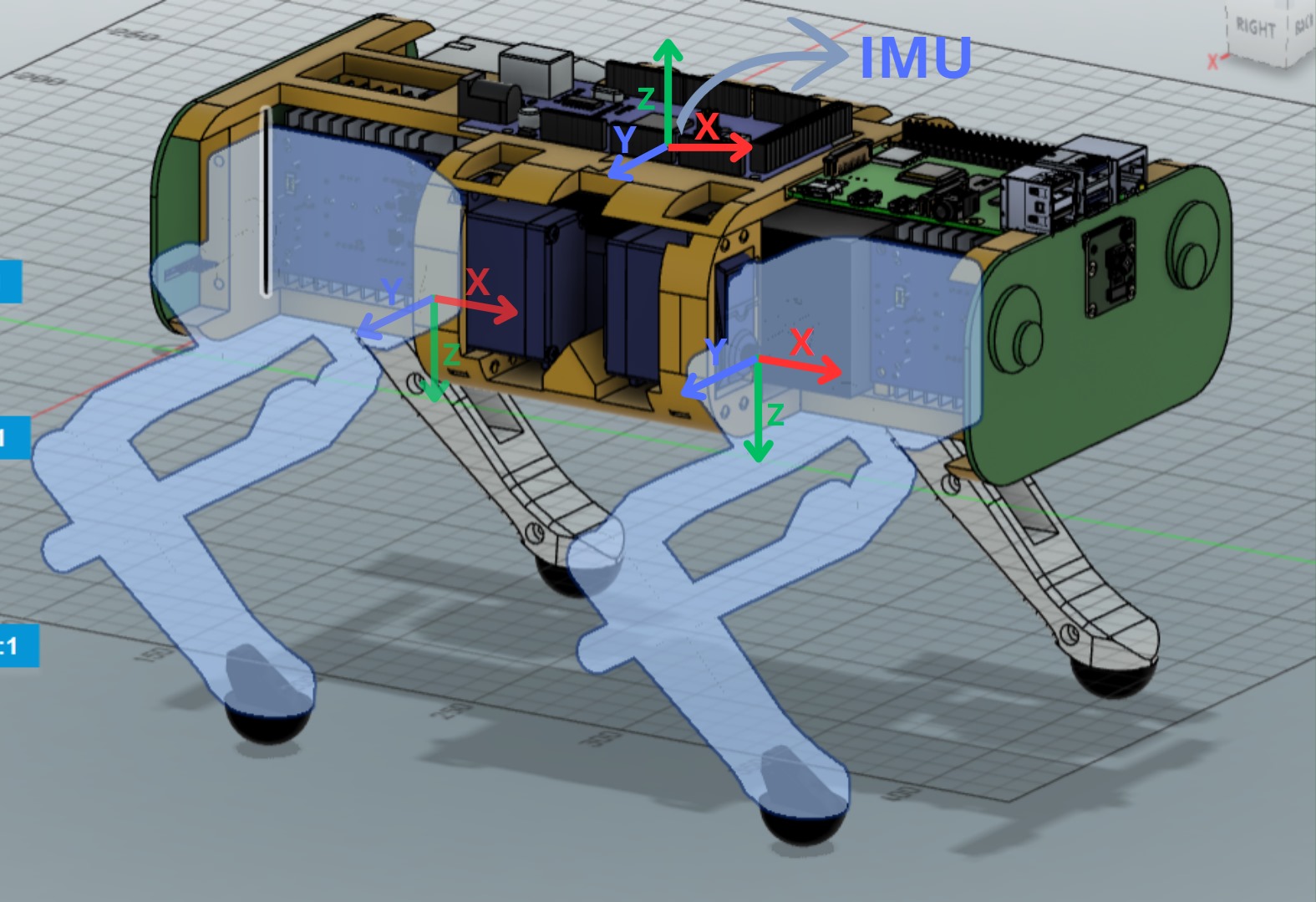

body_TFs_scketch

Note

Rotation matrices repo: here

Rotation matrices docs: here

IK full body

Use IK_solver4Lgs.ipynb. It is a way to manualy retrive angles for each leg to make robot step and walking for the first time.

  1. First the code loads known variables, such as the coefficents retrived from the calibration of each servo (find more here).

and robot dimentions.

  1. We define some usefull function for later (such as translate read to degrees)

  2. We craete a IK solver for each leg. The only thing that changes is the adjustemts need for each leg servo angle. Because some servos has diffrent orientation therfor diffrent zero.

  3. Then we manualy define points in the 3D space (x,y,z) inside an array. This points will then later be passed one by one to the IK solvers adn we will return PWM signals for the corrisponding angle that each servo need to have to reach that point.

  4. Each leg has his own IK solver, given the fact that the motors are oriented in diffrent ways.
  5. Differences from Front to Back: Just in the shoulder angle, infact the servo is oriented on the opposite side. So we just do 180° - angle_in_right

FR

coxa_angle = deg2rad(180) - (np.arctan2(y,z) + np.arctan2(D,coxa))

BR

coxa_angle = (np.arctan2(y,z) + np.arctan2(D,coxa))

  • Differences from Left to Right:

    1. First we have to flip both angles in knee and tibia of about 180°.

    FR

    femur_angle = deg2rad(90) - (shoulder_angle + adjustment)
tibia_angle = np.pi - knee_angle + femur_angle + adjustment

    FL

    femur_angle = (deg2rad(90) - (shoulder_angle + adjustment))
tibia_angle = deg2rad(180) - (np.pi - knee_angle + femur_angle + adjustment)
femur_angle = deg2rad(180) - femur_angle
    1. We have to change the position of the shoulder. The math think that the shoulder is at the right of the leg, but in the right leg, the shoulder servo is at the left to respect to the leg (indide the robot).

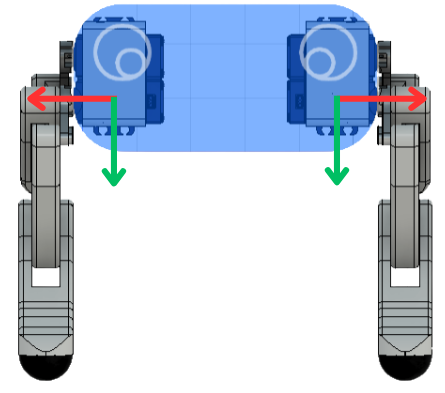

    We want to achive this:

    IK_full_body_desire

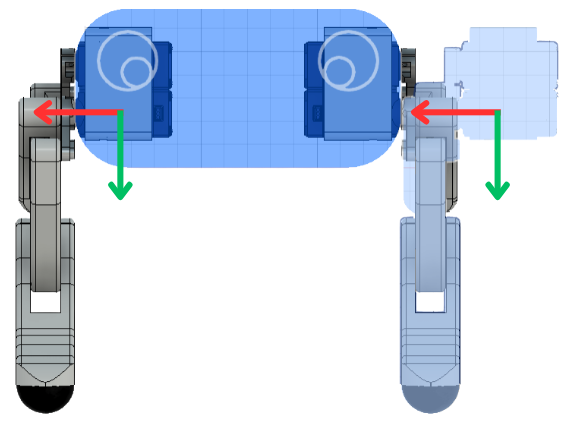

    But the math make the robot beleve it is in this configuration (where the leg is duplicated, not mirrored):

    IK_full_body_math_config

    So the result of IK solver is something like this (not precise, and mooving on a curve rather than a line):

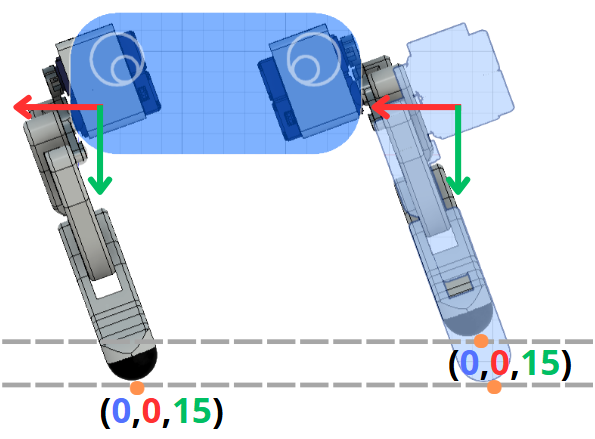

    IK_full_body_wrongIKresult

    After the flip we end up in the desire configuration (we basically move the shoulder inside the robot. In other words we flip the output angle of the shoulder based on the vertical line):

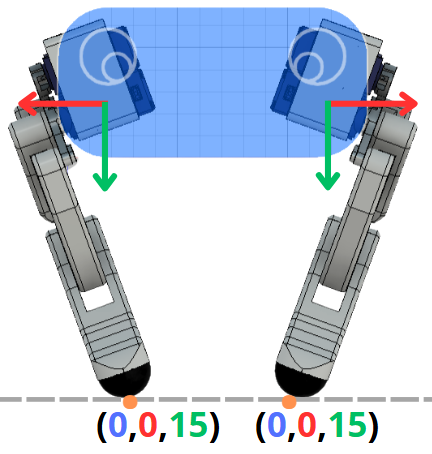

    IK_full_body_goal_achived

    FR

    coxa_angle = deg2rad(180) - (np.arctan2(y,z) + np.arctan2(D,coxa))

    FL

    coxa_angle = (deg2rad(180) - (np.arctan2(y,z) + np.arctan2(D,coxa))) - (2 * ((deg2rad(180) - (np.arctan2(y,z) + np.arctan2(D,coxa)))-deg2rad(90)))

  • We parse the result in a way the we can just copy and paste it in the test_4legs.ino.ino arduino code. The arduino code connect to each servo and move them coordinately. So we where able to manualy simulate a Walking Gate. For a more general and sophisticated gate look here

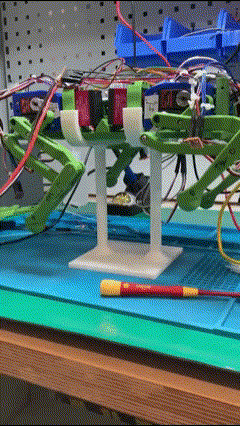

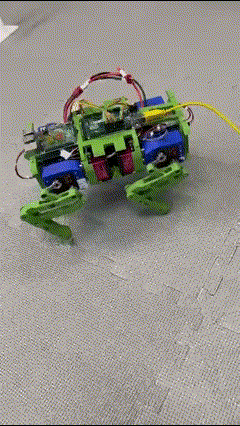

firststeps walking

BOTZO IK REPO
