Hardware
Overview
Botzo hardware components are aimed at being affordable but still of decent quality. The components can be summarized by the following 4 types:
- Processing Unit: Raspberry Pi 4 (future: Jetson Nano).
- Actuators: Optimizing torque for robust movement (25kg servos x3 per leg).
- Power Supply: Batteries capable of delivering ~30 minutes of runtime under typical conditions.
- Sensors: Integrating components for environmental awareness. Botzo top is universal base for attaching fourther components, such as webcam and LiDAR.
For a deeper dive into this phase, check out our Canva Board Proposal.
Bill Of Materials
Electronics
| Component | Link | Price (Single) | Component Total | Description | Quantity |
|---|---|---|---|---|---|
| Arduino Mega | Amazon | 25.99€ | 25.99€ | Control over servos and IMU | x1 |
| Raspberry Pi | - | - | - | Brain | x1 |
| Raspberry Pi camera module V2 8MP | Amazon | 13.79€ | 13.79€ | Camera module for Raspberry | x1 |

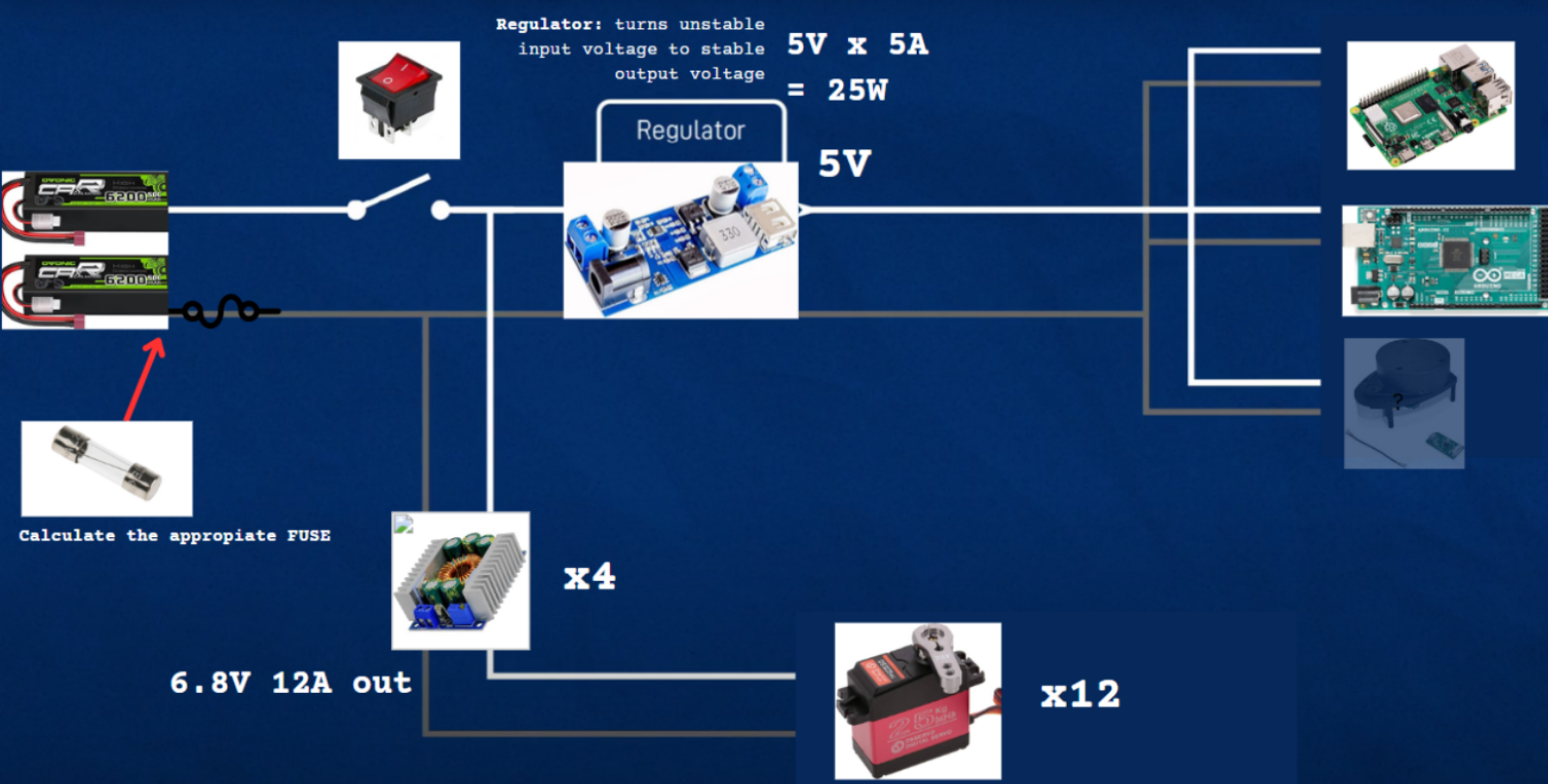

| Buck converter 5V-5A out | Amazon | 11.99€ | 11.99€ | Buck converter 5V-5A (25W) for Rpi | x1 |
| Buck converter 5-40V 12A out | Amazon | 35.99€ | 35.99€ | Buck converters for servos | x5 |
| Servo DS3225 25kg | - | - | - | Actuators for legs | x12 |
| MPU-6050 | - | - | - | Balancing sensor | x1 |
| LiPo batteries RC | Amazon | 45.99€ | 91.98€ | Power in series | x2 |
| Oled Display | Amazon | 9.99€ | 9.99€ | Display informations | x1 |
| PS3 controller | Amazon | 17.99€ | 17.99€ | PS3 controller to move robot | x1 |
Fastners & Materials
| Component | Link | Price (Single) | Component Total | Description | Quantity |
|---|---|---|---|---|---|
| 8x3x4 mm bearings | Amazon | 7.09€ | 14.18€ | Bearings for moving parts | x20 |
| 10x5x4 mm bearings | Amazon | 7.09€ | 7.09€ | For shoulder stronger axes | x4 |
| Dean T Connectors | Amazon | 9.99€ | 9.99€ | Connection of the circuit | x1 |
| Cables 14 AWG | Amazon | 25.5€ | 25.5€ | Cables high current | x1 |
| Cables 10 AWG | Amazon | 16.99€ | 16.99€ | Cables high current | x1 |
| TPU filament | Bambu | 44.73€ | 44.73€ | TPU for foot | x1 |
| PETG filament | Amazon | - | - | TPU for foot | x1 |
| Set of M3, M2.5 and M2 screws | - | - | - | - | - |
| Set of inserts for M3, M2.5 and M2 screws | - | - | - | - | - |
Total: 256.39€
Price can vary depending on what you already have, but the goal is to stay under 500€
